Specifically designed to indicate a hit on the target gong for shooting competitions
  • Suitable for Precision Rifle Series (PRS) and Long-range shooting (LRS)

  • Modern technologies and algorithms


    We use triaxial accelerometers and microprocessors with digital signal processing to ensure the determination of each hit
  • Planty of options


    There are different types of attachment: magnets and Velcro tape, adjustable sensitivity, changeable indicator time, or even a highly customizable model via Android application
  • Superior mirage visability


    Our indicators have increased visibility, compared to other contemporary devices, when affected by the long-distance mirage
  • indicator in action
    R-Hit
    weight 30g (sensor)
    attachment type Velcro tape
    min dist. for 308 400yds (365m)
    min dist. for 338 800yds (730m)
    working temperature from 14°F to 120°F
    (-10°C to +50°C)
    batteries CR2032 - sensor
    2xAA - indicator
    max time in stand-by mode 100h
    max count of indications > 1000
    indication color RGB
    brightness settings
    sensetivity adjustment smooth
    settings via Android app
    RHit indicator
    RHit indicator
    RHit indicator
    RHit indicator
    RHit indicator
    RHit indicator
    RHit indicator
    RHit indicator
    RHit indicator

    Since the bullet has a lot of energy, a force avulses an indicator from the gong when hitting it from close enough distances. That is why it is necessary to minimize the weight of the sensors, which will allow you to work with large calibers at short distances.


    To do this, we divided the system into two parts - light sensors and an indicator that is installed near the gong, in places where there will be no fragments.


    R-Hit indicator can work with up to three sensors, has three color channels, has a smooth change of sensitivity and brightness, and all of these settings can be adjusted via the Android application.


    Mini
    weight 85g
    attachment type Velcro tape
    min dist. for .308 500yds (450m)
    min dist. for .338 1100yds (1000m)
    working temperature from -22°F to 120°F
    (-10°C to +50°C)
    batteries 2xAAA
    max time in stand-by mode 100h
    max count of indications several thousand
    indication color red
    brightness settings
    sensetivity adjustment two-stage
    (low and increased)
    settings via Android app
    indicator Mini
    indicator Mini
    indicator Mini
    indicator Mini
    indicator Mini

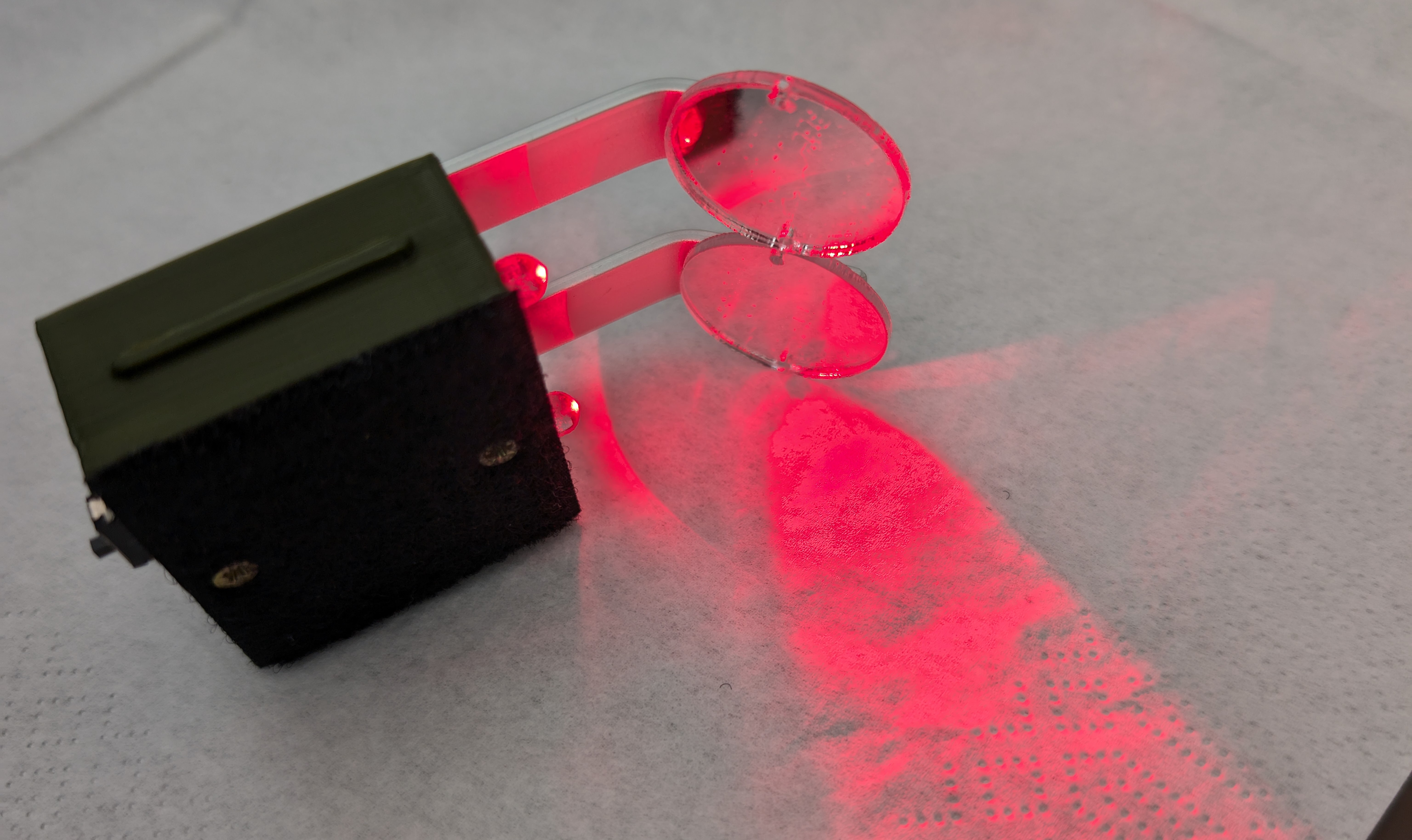

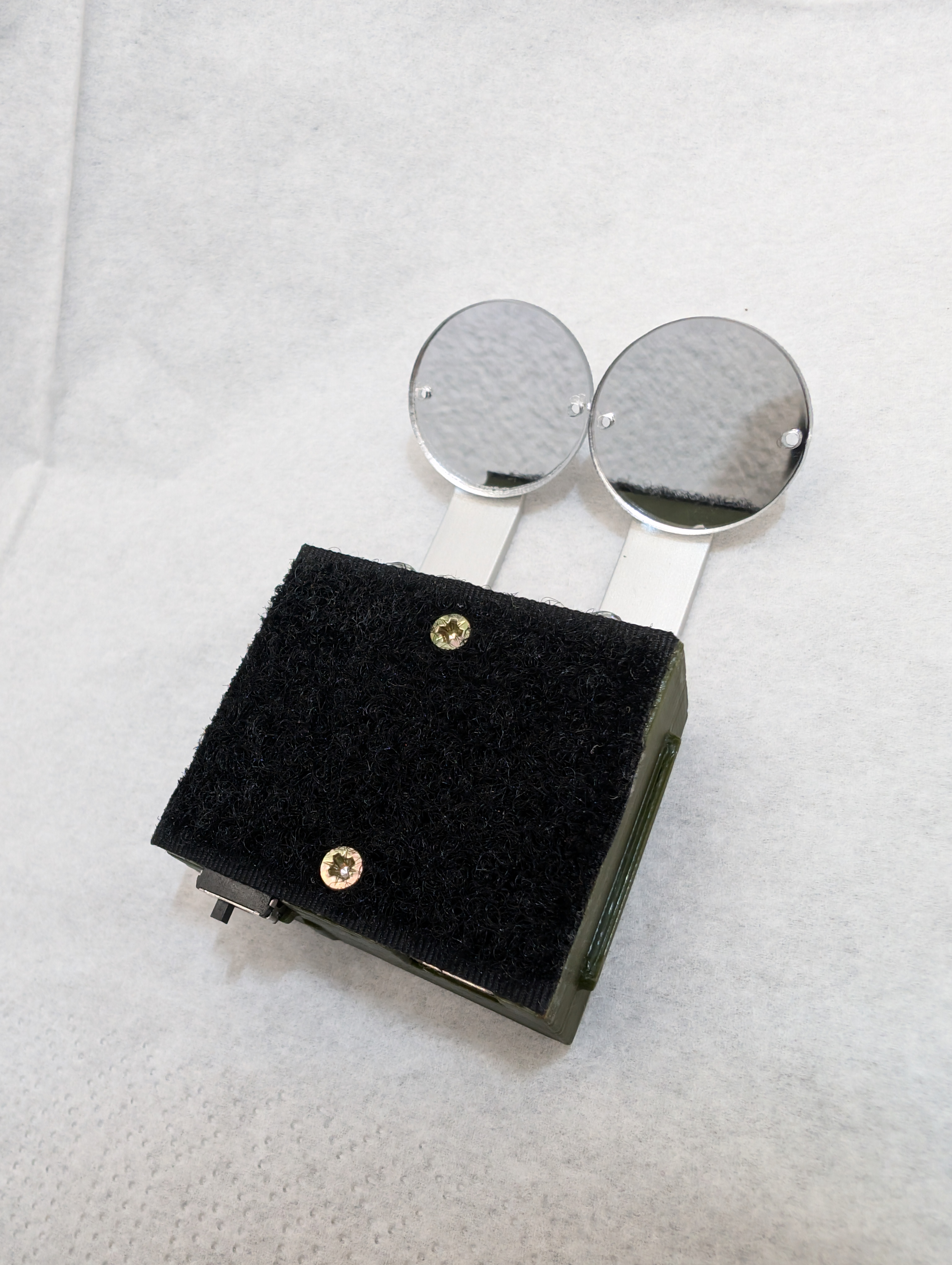

    There are situations when radio channels on the landfill are not possible, or you use small calibers for short distances. Then you can use a more straightforward and cheaper indicator - Mini, which is attached directly to the gong.


    This indicator uses three working mirrors, but the device will continue to function, even if two get damaged. Also, the device has two sensitivity thresholds: low (default) and increased.

    Remark: you will need to replace the batteries when the indication duration becomes twice as long as usual.

    Magneto
    weight 110g (witout magents)
    attachment type Velcro tape or magnets
    min dist. for .308 600yds (550m)
    min dist. for .338 1200yds (1100m)
    working temperature from -22°F to 120°F
    (-10°C to +50°C)
    batteries 2xAAA
    max time in stand-by mode 100h
    max count of indications several thousand
    indication color red
    brightness settings
    sensetivity adjustment two-stage
    (low and increasedh)
    settings via Android app
    indicator Magneto
    indicator Magneto
    indicator Magneto
    indicator Magneto
    indicator Magneto

    If you use small calibers or long distances, you can use an indicator with a convenient mechanism for mounting magnets - Magneto.

  • Magnets connection withstands hits of 22LR from 50 yds and .223 from 250 yds.
  • For large calibers, we still recommend using Velcro tape for the attachment. (In that case, magnets must be removed, and the back surface of the gong cleansed from extra paint and defatted).
  • Indicators on Velcro tape can withstand hits of .308 from 600 yds and .338 from 1200 yds.
  • This indicator uses three working mirrors, but the device will continue to function, even if two get damaged. Also, the device has two sensitivity thresholds: low (default) and increased.

    Remark: you will need to replace the batteries when the indication duration becomes twice as long as usual.

    RHit
    Mini
    Magneto
    Feature R-Hit Mini Magneto
    weight 30g (sensor) 85g 110g (witout magents)
    attachment type Velcro tape Velcro tape Velcro tape or magnets
    min dist. for .308 400yds (365m) 500yds (450m) 600yds (550m)
    min dist. for .338 800yds (730m) 1100yds (1000m) 1200yds (1100m)
    working temperature from 14°F to 120°F
    (-10°C to +50°C)
    from -22°F to 120°F
    (-10°C to +50°C)
    from -22°F to 120°F
    (-10°C to +50°C)
    batteries CR2032 - sensor
    2xAA - indicator
    2xAAA 2xAAA
    max time in stand-by mode 100h 100h 100h
    max count of indications > 1000 several thousand several thousand
    indication color RGB red red
    brightness settings
    sensetivity adjustment smooth two-stage two-stage
    settings via Android app

    Example of indicator in action

    How to mount an indicator

    How to use an indicator
